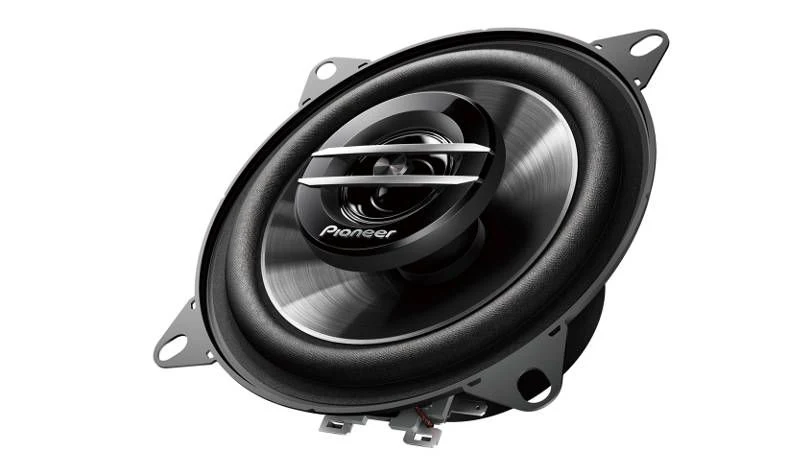

Pioneer TS-G1020S/XIID
General Information
SYSTEM: Coaxial 2way
SOUND PRESSURE LEVEL(GK-090）: 87 dB（±1.5ｄB）
FREQUENCY RANGE　 (GK-090）: 35Hz 〜 27KHz　（ï¼20dB）
Max Wattage: 210W
Nominal Wattage: 30(W)
SIZE: 4" (100mm), CONE
Impedence: 4 Ohms
Woofer
CONE MATERIAL: IMPP COMPOSITE CONE
Color: BLACK (HAIR LINE)
Surround material: RUBBER COATED CLOTH SURROUND
Tweeter
Type: PIEZOELECTRIC TW
DIAPHRAGM MATERIAL: PET
color: BLACK
Installation information
Dimensions (Dia x Depth): Φ 102 X 45.2(mm)
Weight: 0.31kg (0lbs 11oz)
Mounting depth: 42.8 mm
Cutout hole: 106 mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Pioneer TS-G1020S/XIID
Pioneer TS-G1020S/XIID
General Information
SYSTEM: Coaxial 2way
SOUND PRESSURE LEVEL(GK-090）: 87 dB（±1.5ｄB）
FREQUENCY RANGE　 (GK-090）: 35Hz 〜 27KHz　（ï¼20dB）
Max Wattage: 210W
Nominal Wattage: 30(W)
SIZE: 4" (100mm), CONE
Impedence: 4 Ohms
Woofer
CONE MATERIAL: IMPP COMPOSITE CONE
Color: BLACK (HAIR LINE)
Surround material: RUBBER COATED CLOTH SURROUND
Tweeter
Type: PIEZOELECTRIC TW
DIAPHRAGM MATERIAL: PET
color: BLACK
Installation information
Dimensions (Dia x Depth): Φ 102 X 45.2(mm)
Weight: 0.31kg (0lbs 11oz)
Mounting depth: 42.8 mm
Cutout hole: 106 mm
Original: $19.56
-65%$19.56
$6.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
General Information
SYSTEM: Coaxial 2way
SOUND PRESSURE LEVEL(GK-090）: 87 dB（±1.5ｄB）
FREQUENCY RANGE　 (GK-090）: 35Hz 〜 27KHz　（ï¼20dB）
Max Wattage: 210W
Nominal Wattage: 30(W)
SIZE: 4" (100mm), CONE
Impedence: 4 Ohms
Woofer
CONE MATERIAL: IMPP COMPOSITE CONE
Color: BLACK (HAIR LINE)
Surround material: RUBBER COATED CLOTH SURROUND
Tweeter
Type: PIEZOELECTRIC TW
DIAPHRAGM MATERIAL: PET
color: BLACK
Installation information
Dimensions (Dia x Depth): Φ 102 X 45.2(mm)
Weight: 0.31kg (0lbs 11oz)
Mounting depth: 42.8 mm
Cutout hole: 106 mm
